SUZUKI HAYABUSA 2008-20 Camshafts ST-2

Type	ST-2

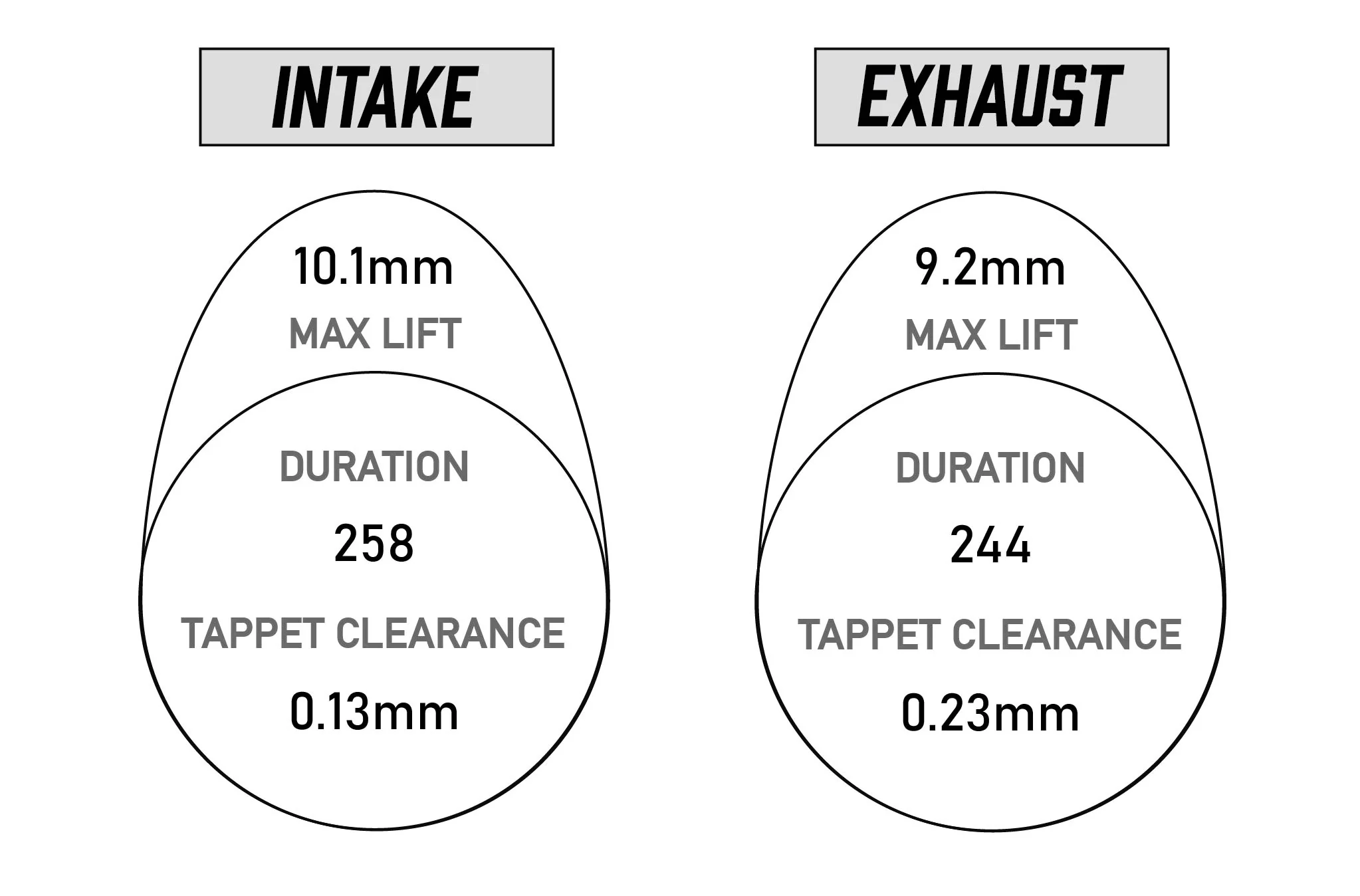

MAX LIFT(mm)	IN 10.1mm / EX 9.2mm
1mm DURATION (degrees)	IN 258 / EX 244
Standard Tappet Clearance(mm)	IN 0.13mm / EX 0.23mm

INCLUDES:

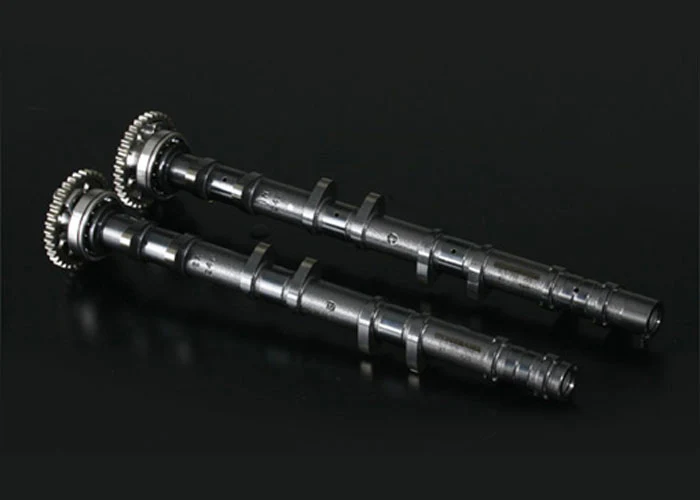

• Intake Camshaft
• Exhaust Camshaft
• Valve Springs
• Valve Spring Seat Shims



REQUIRES PARTS:

• Valve Cotter Set (#222-509-3000)

All cams are ground by Yoshimura Japan using truly state-of-the-art equipment. Cams are machined from billet cam blanks, not welded up or reground stock units

* Cam timing should be set by a qualified mechanic to ensure proper function. Improper installation or cam timing could result in catastrophic engine failure.

Know you’re racing with the best.

Yoshimura R&D is the only authorized distributor in North America for our sister companies Yoshimura Japan (YJP) and Yoshimura Asia (YAT). YJP/YAT develop and test racing components that are un-restricted versions than the choked-down systems which are required for more restrictive marketplaces like Japan and Europe. This imported product is specially configured for less restrictive markets. In other words, you’re getting a custom exhaust that’s perfect for racing in the US market.

What your missing if you don’t buy U.S. spec through us!

• In-house warranty and technical support
• Certificate of authenticity
• Full 12-month warranty

Instructions and Parts Diagram

Instructions / Parts Diagram
